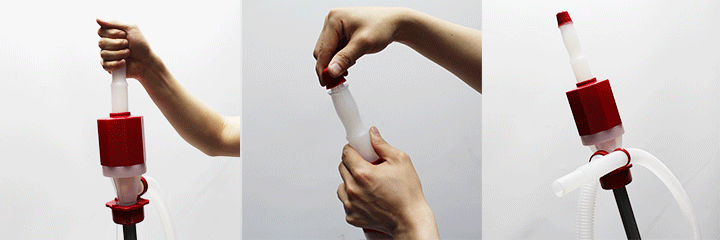

AMPA A TI-901 Siphon Hand Pump for Drum Can (Heavy Duty / High Speed)

Features & Applications

Suction type : Manual up and down piston type

 Applicable liquids : Kerosene, Diesel, Gasoline, Water(not safe for drinking), Light oils, Chemical insecticides, Soaps, Detergents, Mild acids, Anti-freeze, Liquid waxes  Non corrosive, Non toxic plastic material construction, Light-weight

Depth adjustable with 30mm(1.20″) long adaptor for standard 50.8mm( 2″) drum bung adaptor

DO NOT use this pump for transferring the following liquids : ACETON, BENZEN, CREOSOL,ETHYL, PHENOL, METHYL ETHYLE, Concentrated CAUSTIC SODA LIQUID, NITRIC ACID, HYDROCHLORIC ACID, SULFURIC ACID, TOLUENE, etc.

Specifications

Total Length : 1,150mm(45.3″)

 Suction tube Length : 850mm(33.5″)

 Suction tube Outer Dia. : 25.5mm(1.0″)

 Discharge Tube Length : About 1,200mm(47.2″)

Discharge Tube Outer Dia. : 22.5mm(0.89″)

 Head Outer Dia. : 83.5mm(3.29″)

 Delivery Volume : About 21LPM (5.5GPM)

Main Material : P.E

About 365g(12.9Oz)
