Features & Applications

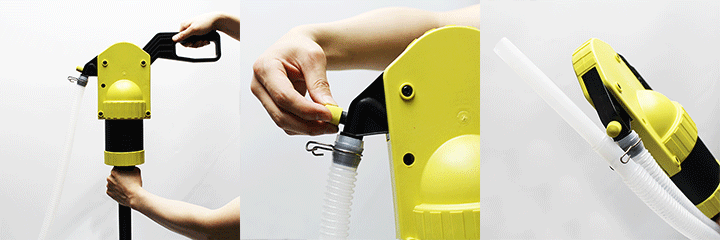

Suction type : manual up and down piston lever type / Heavy duty for thick oil
Applicable liquids : Kerosene oil,Diesel Fuel, Diesel oil, Bio Diesel, Hydraulic oil, Lubricant, etc. A unique toggle mechanism is incorporated in the handle linkage to correct piston shaft geometry to create smooth operation and also prevent premature piston shaft seal failure.
2″ drum bung adaptor With lock Nut
DO NOT use this pump for transferring the following
liquids : ACETON, BENZEN, CREOSOL,ETHYL, PHENOL, METHYL ETHYLE, Concentrated CAUSTIC SODA LIQUID, NITRIC ACID, HYDROCHLORIC ACID, SULFURIC ACID, TOLUENE, etc.
Specifications
Total Length : About 1,300mm(45.3″)
Suction tube Length : 350 ~ 980mm(13.8″ ~ 38.6″)
Suction tube Outer Dia. : 32mm(1.26″)
Discharge Tube Length : About 2M(6.6ft)
Discharge Tube Outer Dia. : 20mm(0.79″)
Delivery Volume : About 530ml per stroke
Main Material : ABS, Polyprophylene, Acetal
Net Weight/pc : About 980g
